VALVES

We provide high quality valves, catering to standard and customer specifications, ensuring the highest degree of satisfaction for clients in industrial sectors. Here are some of the products:

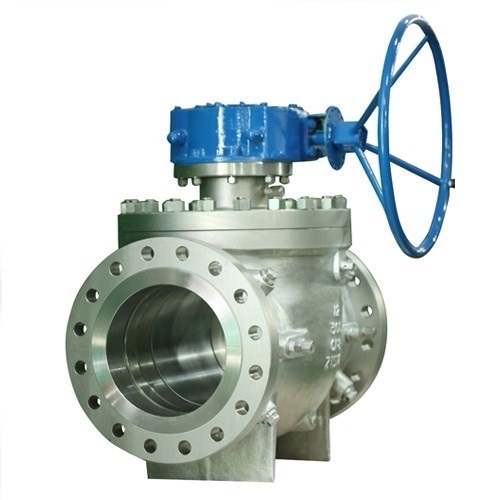

  • Ball Valves:
  1. Types: Floating, Trunnion Mounted, Top Entry Combination, Hard Seal, Fixed and Floating Structures.
  2. Pressure Rating: 150/300/600/900/1500 LBS.
  3. Temperature Range: -29 to 500°C.
  4. Materials: Carbon Steel, Stainless Steel and Alloyed Steel, based on client specifications
  5. Sizes: ½’’ - 36’’ (DN 15 – DN 900).

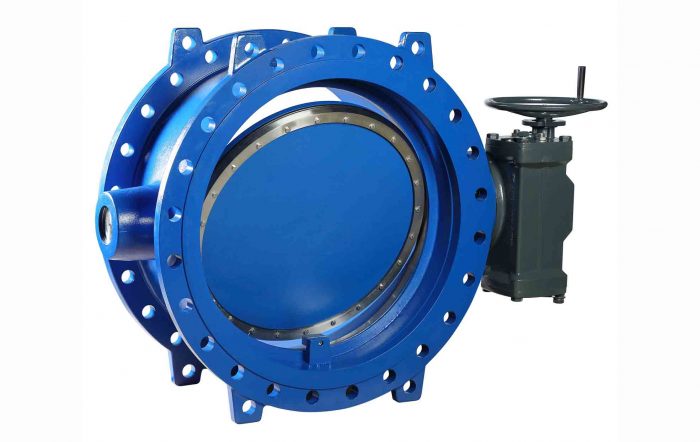

  • Butterfly Valves:
  1. Types: Rubber lined, Double & Triple Offset, Waterworks, available in Wafer, Lug & Flange Type with Actuators.
  2. Working Pressures: Up to 16 Bar (RL & Waterworks) and Up to 156 Bar (Double /Triple Offset).
  3. Temperature Range: -20 to 160°C (RL) and 196 to 700°C (Double/Triple Offset).
  4. Materials: Carbon Steel, Stainless Steel and Alloyed Steel, based on client specifications
  5. Sizes: 2”-120” (DN 50 – DN 3000), 3”-160” (DN 80 – DN 4000) for Waterworks.

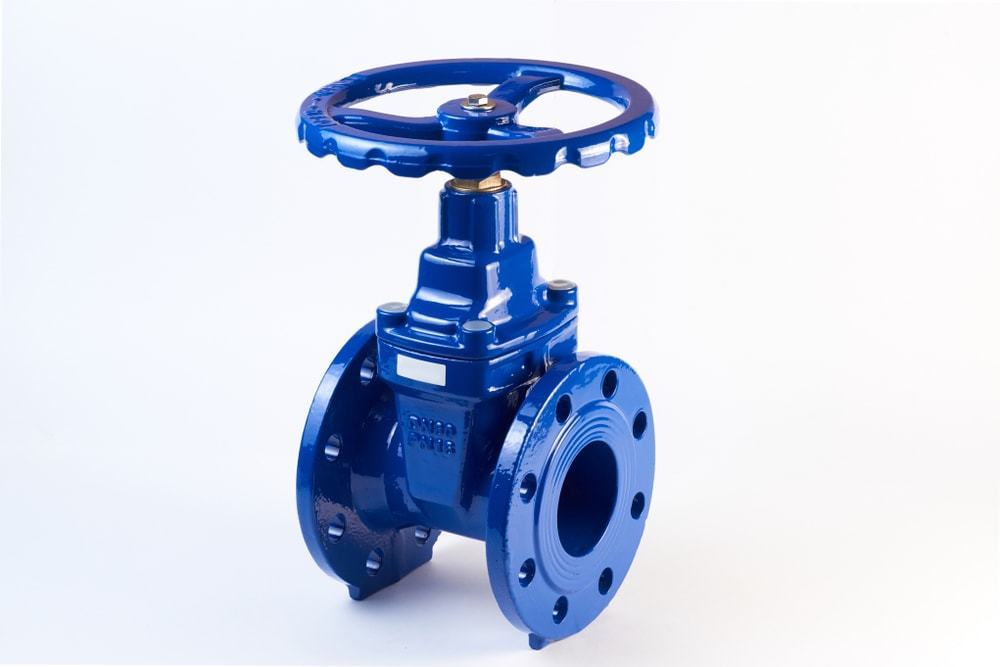

  • Gate Valves:
  1. Types: Resilient Seated, Flexible & Solid Wedge
  2. Pressure Rating: 150 to 2500 LB.
  3. Materials: Carbon Steel, Stainless Steel and Alloyed Steel, based on client specifications.
  4. Sizes: 2”-36” up to 300 LBS & 2”- 16” for higher classes, 2”-12” for Resilient Seated.

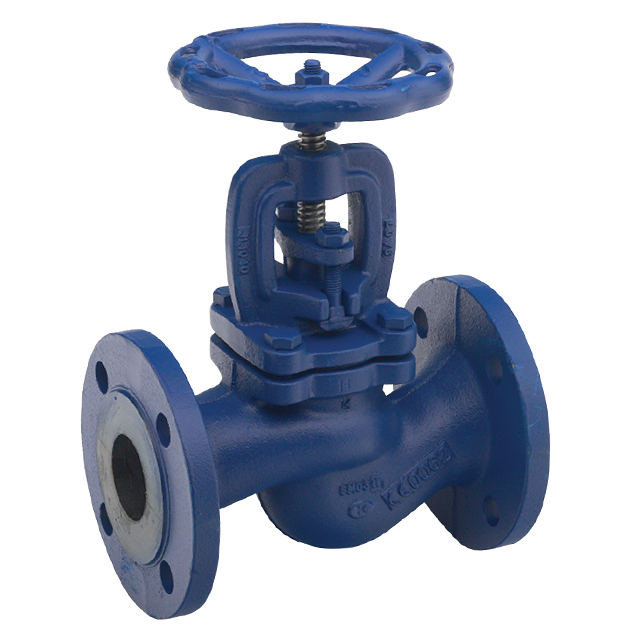

  • Globe Valves:
  1. Types: Flat & Plug Type.
  2. Pressure Rating: 150 to 2500 LB.
  3. Materials: Carbon Steel, Stainless Steel and Alloyed Steel, based on client specifications.
  4. Sizes: 2”-24” depending on pressure rating.

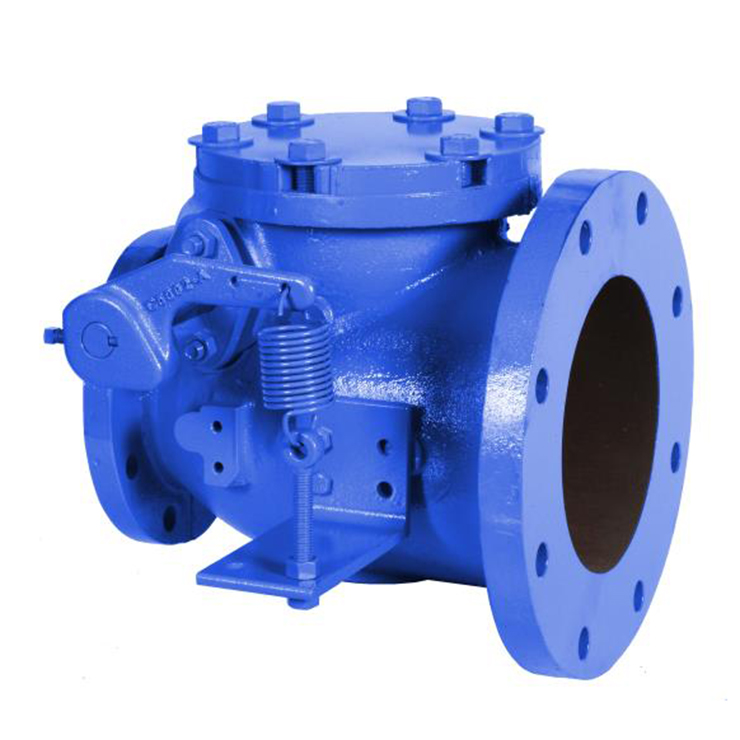

  • Check Valves:
  1. Types: Steel, Swing & Duo Check Valve
  2. Pressure Rating: 150 to 2500 LB.
  3. Materials: Carbon Steel, Stainless Steel and Alloyed Steel, based on client specifications.
  4. Sizes: 2”-72” depending on pressure rating.

PIPES & FITTINGS

We provide high quality pipes, tubes and fittings that are compatible with global design standard. These fittings can also be made to match with client specifications as well.

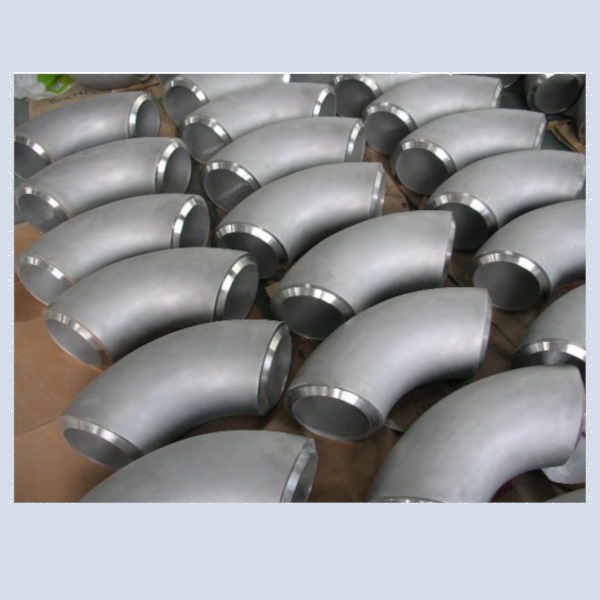

Fittings

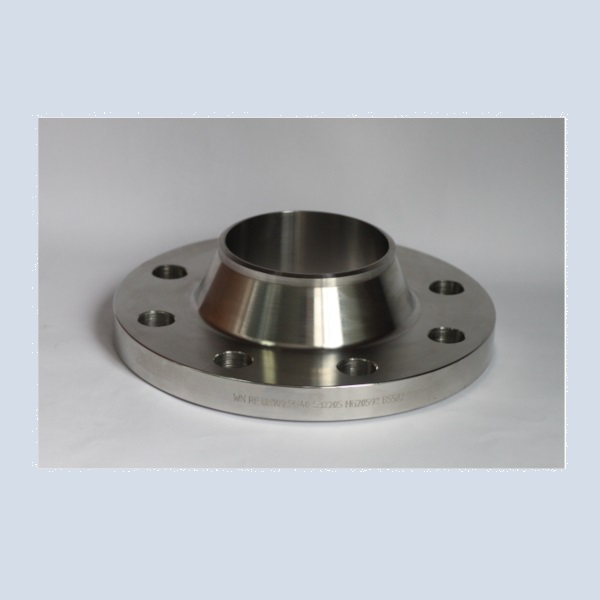

Flanges

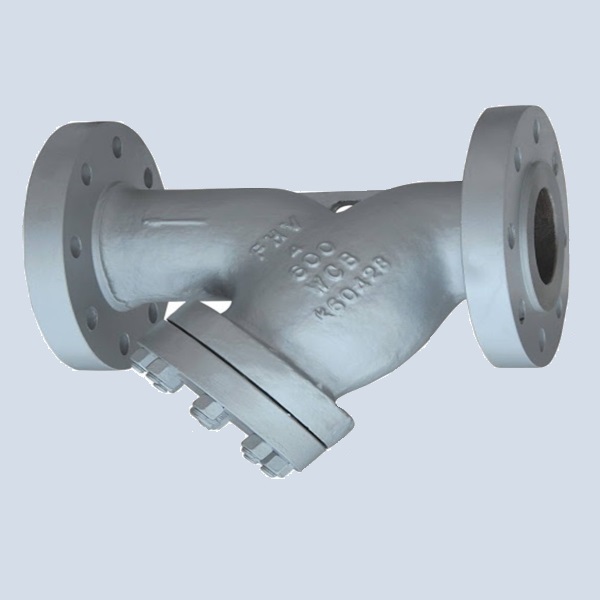

Strainers

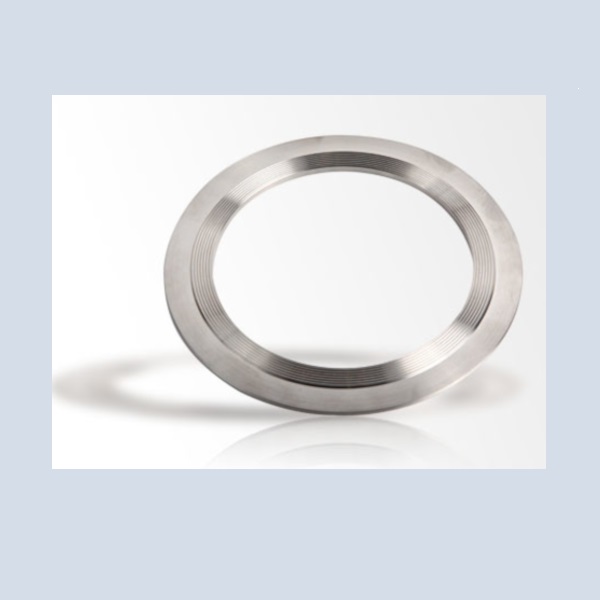

Gaskets

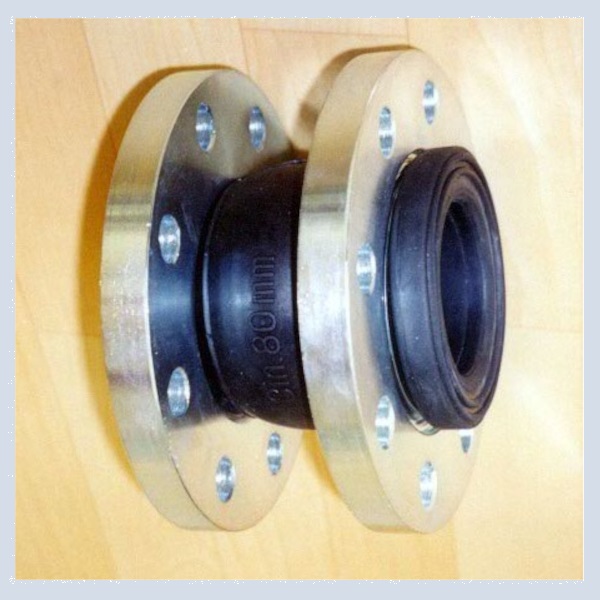

Couplings

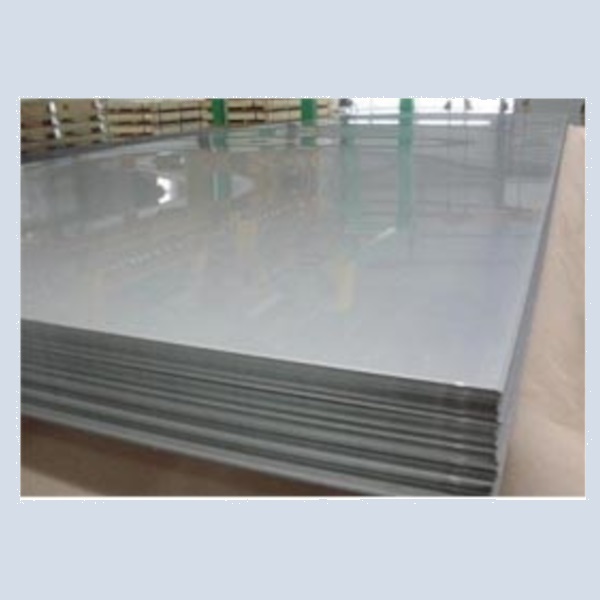

Plates

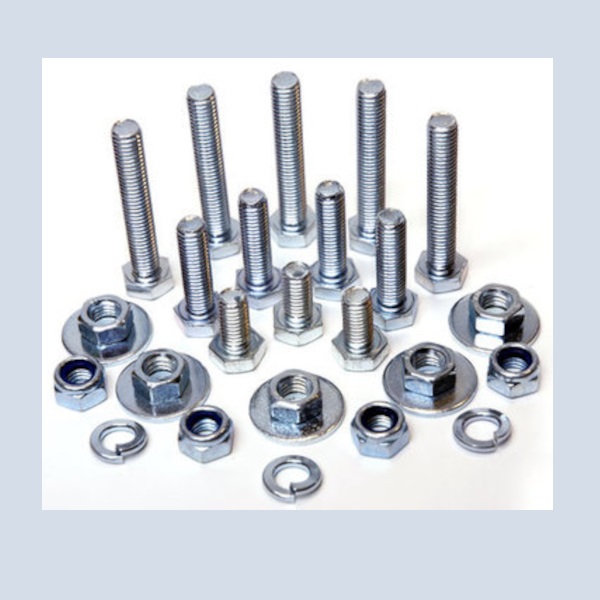

Fasteners

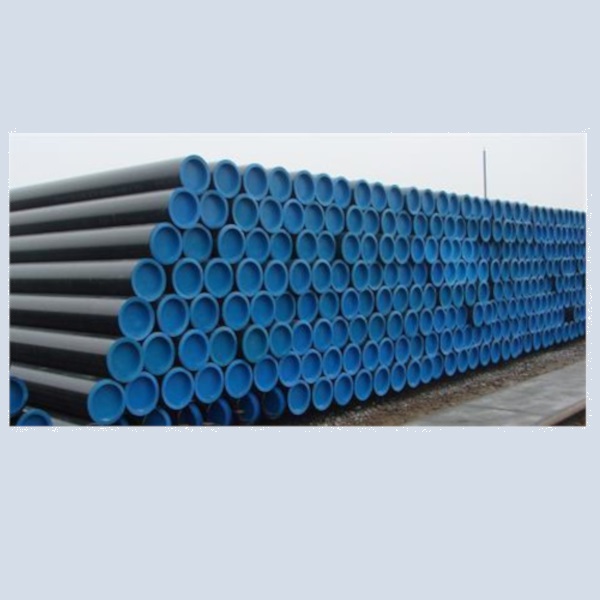

Pipes

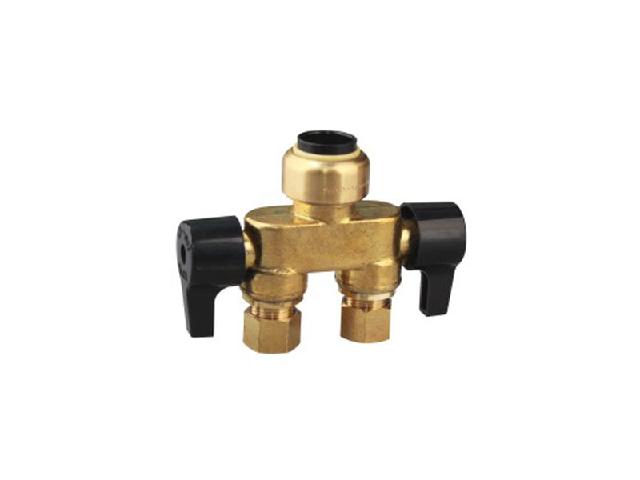

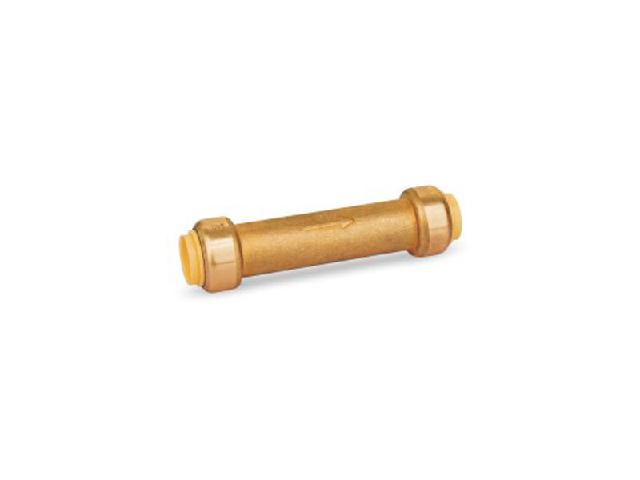

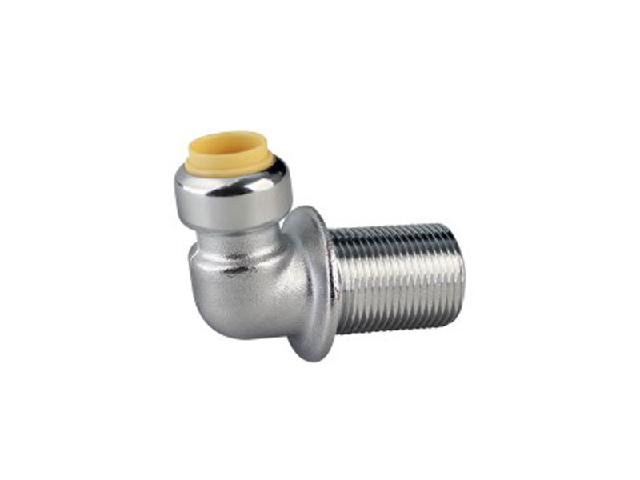

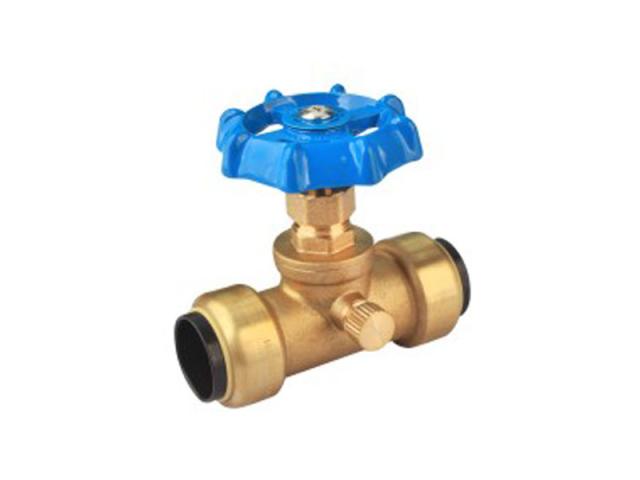

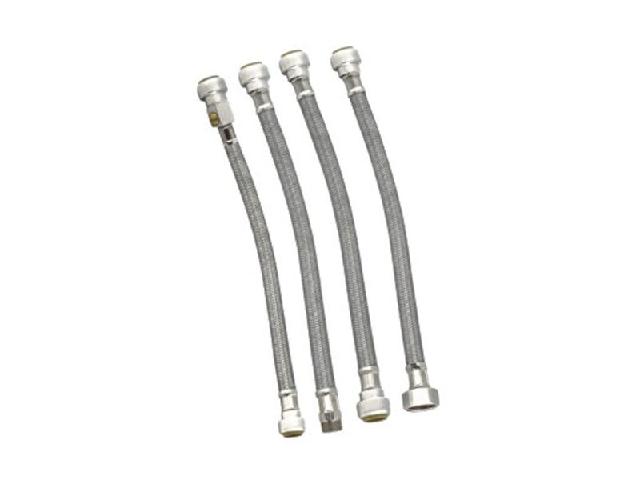

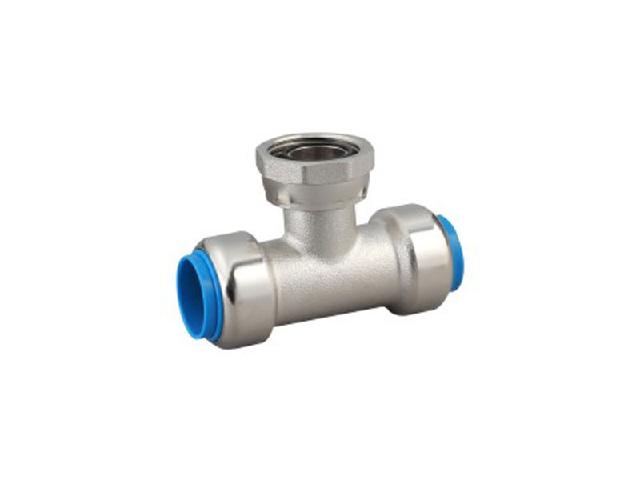

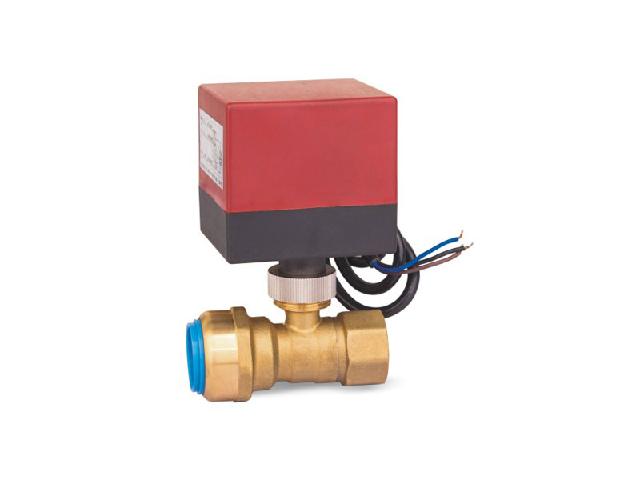

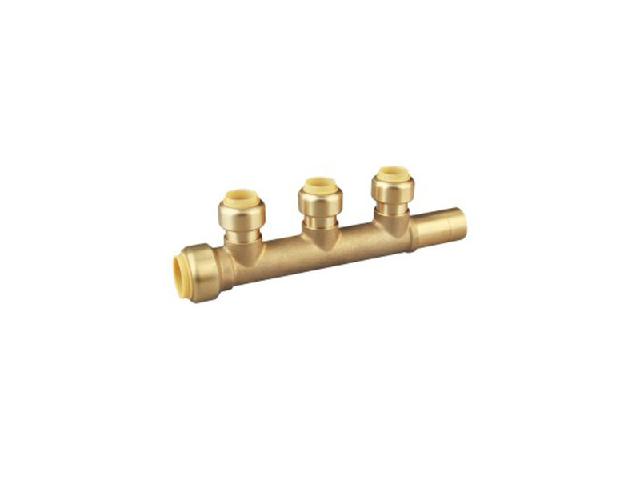

PIPES & PUSH FITTINGS

Al-Fanar also offers a wide range of products for push pipe fittings and valves that are implemented for sanitary purposes, available in copper, aluminum, PVC and CPVC material. Here are some of the products.
